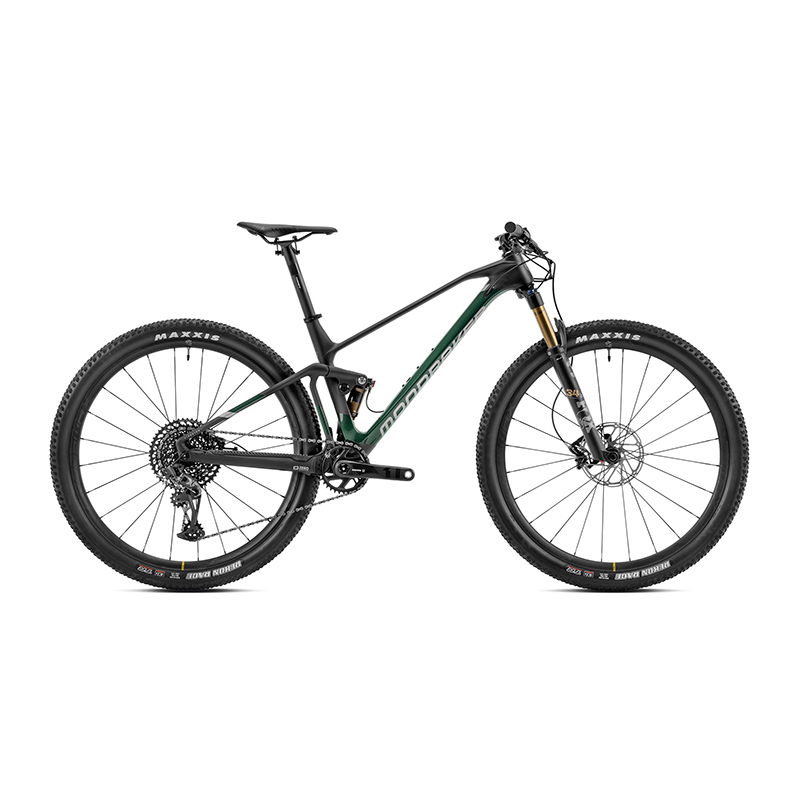

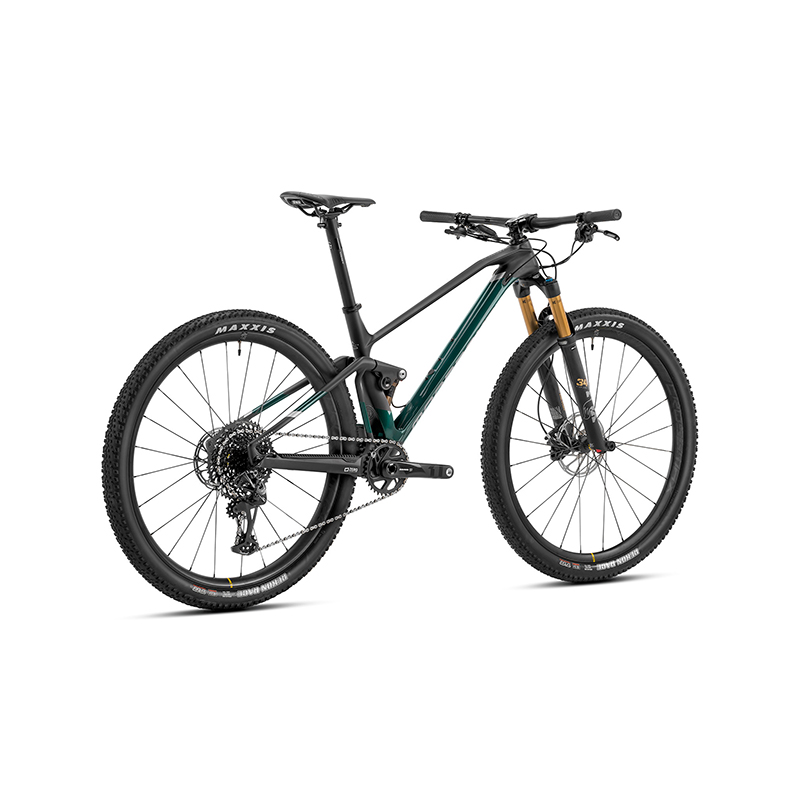

2023 MONDRAKER F-PODIUM CARBON R

F-Podium 29 Stealth Air Full Carbon, Zero Suspension System optimized for XCO, 100mm travel, , 12x148mm Boost rear axle, shock absorber fender, Post Mount brake anchor.

Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Shock absorber: Fox Float DPS SV EVOL Factory Kashima, 185×47.5mm. Adjustments: remote compression adjustment in 2 positions (open/lock), low rebound, air preload. Trunnion upper anchor, 22.2x10mm lower bushings.

Shock Absorber Adjustment: Firm compression, light rebound, Token 0.2

Fork: Fox 34 Step Cast Float FIT4 Evol Factory Kashima, 110mm, tapered head tube, Boost 15x110mm axle, 44mm offset. Adjustments: remote control 2pos Push-unlock, micro adjustable low compression, rebound, air preload

Fork remote control: Fox double shot

Address: Acros AZX-239 R1 Block Lock, upper ZS44/28.6, lower ZS56/40

Power: MDK, 6061 T6 alloy, for 31.8mm handlebars, height: +/-5º, length depending on bike size: S/M: 50mm, L: 60mm, XL: 70mm

Handlebar: ONOFF Helium Carbon 0.2, height: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, diameter 31.8mm

Grips: ONOFF Desert, 1 lock-on, 135mm

Shank: ONOFF Helium Carbon 0-R, diameter 31.6mm, length 400mm

Saddle: Fizik Antares R7

Front brake: SRAM Level TL, two-piece caliper, one-piece IS 180mm 6-bolt Centerline disc, organic sheet steel pads

Back brake: SRAM Level TL, two-piece caliper, one-piece IS 180mm 6-bolt Centerline disc, organic sheet steel pads

brake levers: SRAM Level TL, Direct Link actuation, tool-based reach adjustment, lever shaft with bushings

Tires: Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Radios: Mavic bi-butted straight pull, spoke without contact between spokes

front hub: Mavic, Boost 15x110mm, IS 6 screws

rear hub: Mavic, Boost 12x148mm, core with ID360 technology, IS 6 screws, XD core

Front tire: Maxxis Rekon Race 29×2.35, EXO casing, tubeless ready, 120TPI, folding rim

rear tire: Maxxis Rekon Race 29×2.35, EXO casing, tubeless ready, 120TPI, folding rim

Cranks: SRAM X1 Carbon Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M/L/XL: 175mm

Dishes: 34, CNC machined alloy, X-SYNC 2

bottom bracket: SRAM DUB BSA, sealed bearings, 73mm

Chain: SRAM GX Eagle, 12v, Powerlock

Shift – rear: SRAM X01 Eagle, Type 3 clutch with needle bearings, box lock, 1x12v, X-ACTUATION 1:1

Controls – shift buttons: SRAM Trigger GX Eagle, 12v, X-ACTUATION 1:1

Pinions: SRAM XG-1275, 10-50T, 12v

shift pin: SRAM UDH

Weight without pedals: 11.2kg
