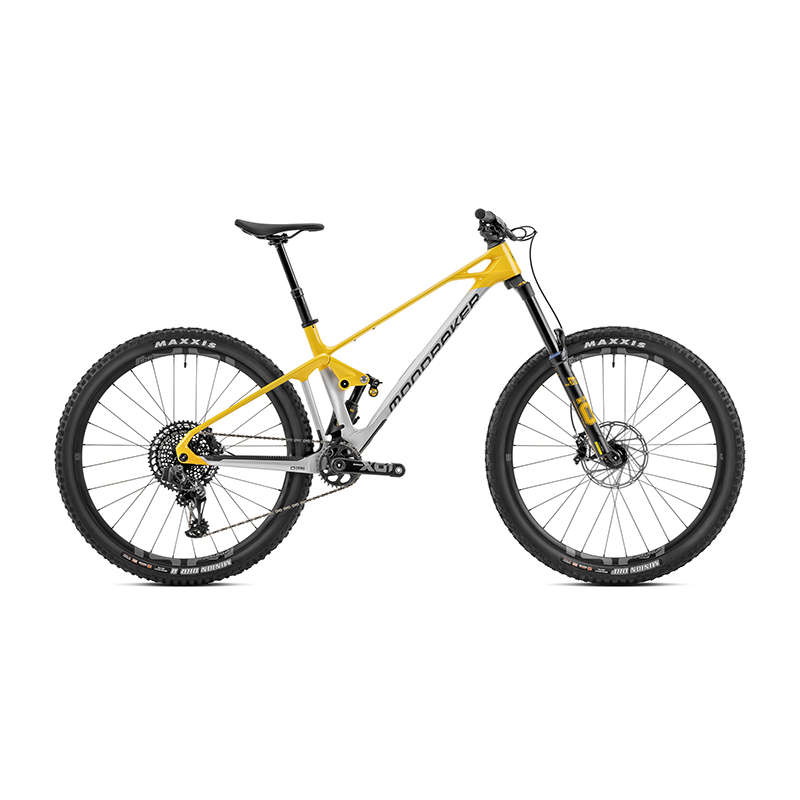

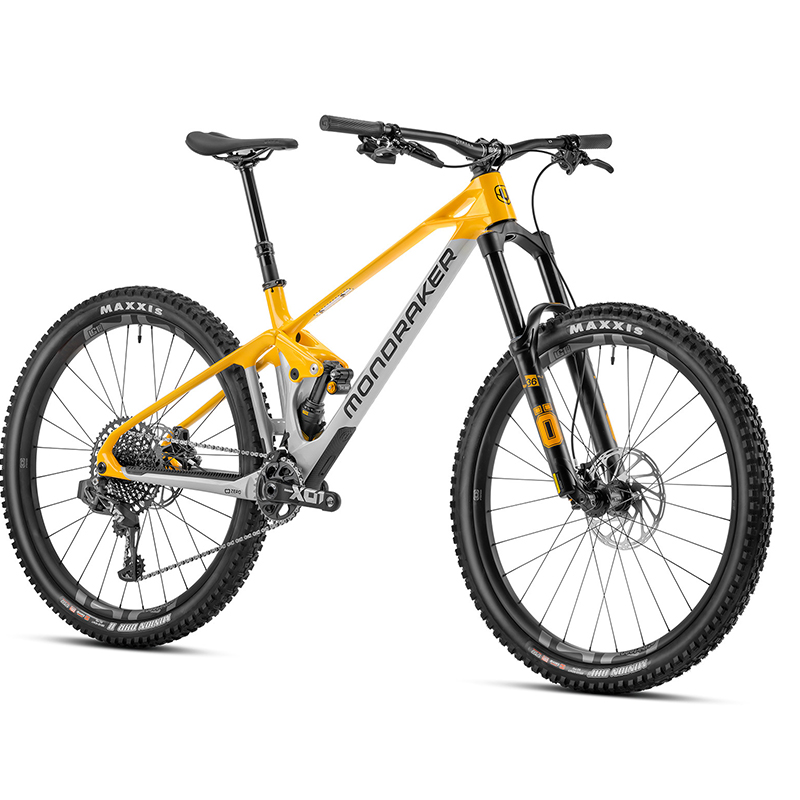

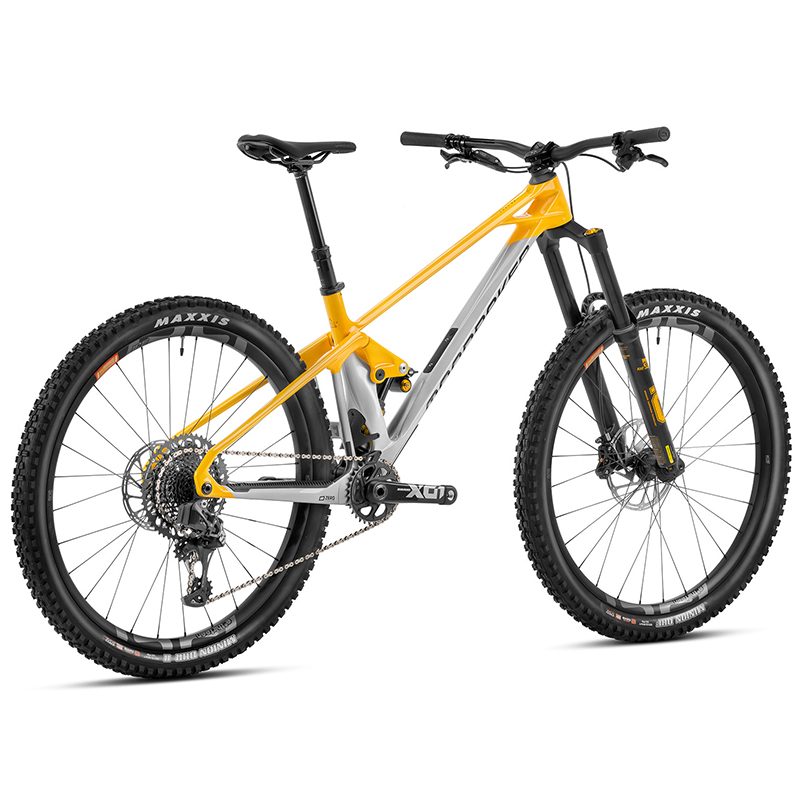

2023 MONDRAKER FOXY CARBON XR

Chart

Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single chainrings, HHG internal cabling system , sealed Enduro MAX bearings, shock absorber fenders, ISCG 05, custom frame protectors.

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Shock absorber: Öhlins TTX Air 205X65mm. Adjustments: high compression lever with “climb” mode (semi-locked), low compression, rebound, air preload. Trunnion upper anchor, 30x8mm lower bushings.

Shock Absorber Adjustment: Compression C10, Rebound R35. Volume reducer 16,000 (2xF+1E)

Address: Acros customized for 1-1/2″ tube, 40x52x7 angular contact bearings, internal cable guide

Power: ONOFF Krypton FG 30mm, CNC, for 31.8mm handlebars

Handlebar: ONOFF Krypton Carbon 1.0, height: 25mm, width: 800mm, 9º backsweep, 5º upsweep, diameter 31.8mm

Grips: ONOFF Desert, 1 lock-on, 135mm

Shank: ONOFF Pija internal wiring, diameter 31.6mm, size S: 405×95-125mm, M: 458×120-150mm, L: 498×140-170mm, XL: 498×140-170mm

Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake: SRAM Code RSC, oversized 4-piston caliper, 6-bolt IS one-piece 200mm Centerline disc, sintered sheet steel pads

Back brake: SRAM Code RSC, oversized 4-piston caliper, 6-bolt IS one-piece 180mm Centerline disc, sintered sheet steel pads

brake levers: SRAM Code RSC, SwingLink, ball-bearing lever axle, bite point control and tool-less reach adjustment

Tires: e*thirteen Race Carbon Enduro, IW30 Hookless, carbon, 30mm internal width, tubeless ready, 28 spokes

Radios: e*thirteen custom Hive alloy, black tri-butted, alloy nipples, with nipple washers

front hub: e*thirteen Boost 15x110mm, triple-sealed, 100% machined aluminum, IS 6 bolts

rear hub: e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, IS 6 bolts, XD core with a 6º return angle

Front tire: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim

rear tire: Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim

Cranks: SRAM X01 Eagle, Boost, DUB axle, Direct Mount chainring, S/M: 170mm, L/XL: 175mm

Dishes: 32, CNC machined alloy, X-SYNC 2

bottom bracket: SRAM DUB BSA, sealed bearings, 73mm

Chain: SRAM GX Eagle, 12v, Powerlock

Shift – rear: SRAM X01 Eagle AXS, clutch with needle bearings, box lock, 1x12v, X-ACTUATION 1:1

Controls – shift buttons: SRAM Eagle AXS, 12v

Pinions: SRAM XG-1295, 10-52T, 12v

Weight without pedals: 13.9kg
