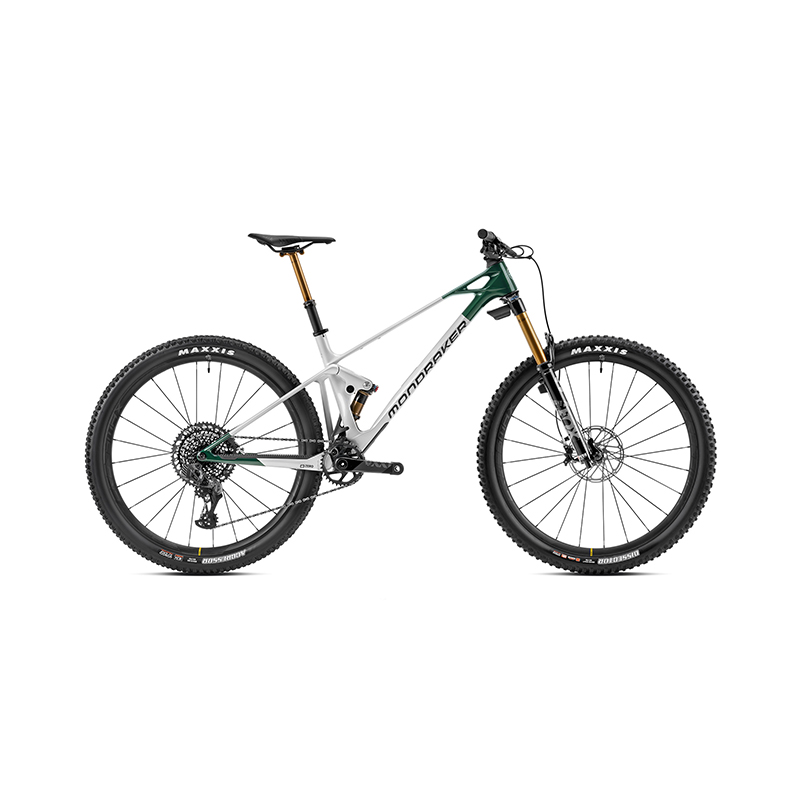

2023 MONDRAKER RAZE CARBON RR SL

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single chainrings, HHG internal cabling system , Enduro MAX sealed bearings, shock absorber fenders, ISCG 05, custom frame protectors. MIND system (EU only)

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Shock absorber: Fox Float DPS Factory Kashima Evol LV, 205×57.5mm. Adjustments: 3-position compression lever, low compression, low rebound, air preload. Trunnion upper anchor, 30x8mm lower bushings.

Shock Absorber Adjustment: Light Compression, Light Rebound, Token 0.6

Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered head tube, Boost 15x110mm axle, 44mm offset. Settings: High and low compression, high and low rebound, air preload

Address: Acros customized for 1-1/2″ tube, 40x52x7 angular contact bearings, internal cable guide

Power: ONOFF Krypton FG 30mm, CNC, for 31.8mm handlebars

Handlebar: ONOFF Krypton Carbon 1.0, height: 25mm, width: 800mm, 9º backsweep, 5º upsweep, diameter 31.8mm

Grips; ONOFF Desert, 1 lock-on, 135mm

Shank: Fox Transfer Factory Kashima internal wiring, diameter 31.6mm, size S: 363.5x125mm, M: 418.3x150mm, L/XL: 475.1x175mm

Saddle: Fizik Antares R7

Front brake: SRAM G2 RSC, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads

Back brake: SRAM G2 RSC, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads

brake levers: SRAM G2 RSC, SwingLink, tool-less reach adjustment

Tires: Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Radios: 24 straight pull bi-butted spokes

front hub: Infinity hub, Boost 15x110mm, IS 6 bolts

rear hub: Infinity hub, core with ID360 technology, Boost 12x148mm, IS 6 bolts

Front tire: Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim

rear tire: Maxxis Aggressor 29×2.3, tubeless ready, double compound, Exo casing, 60TPI, folding rim

Cranks: SRAM XX1 Eagle, Boost, DUB axle, Direct Mount chainring, S/M: 170mm, L/XL: 175mm

Dishes: 32, CNC machined alloy, X-SYNC 2

bottom bracket: SRAM DUB BSA, sealed bearings, 73mm

Chain: SRAM GX Eagle, 12v, Powerlock

Shift – rear: SRAM XX1 Eagle AXS, Type 2.1 clutch with needle bearings, case lockout, carbon long case, 1x12v, X-ACTUATION 1:1

Controls – shift buttons

SRAM Eagle AXS 12v

Pinions: SRAM XG-1295, 10-52, 12v

shift hanger: SRAM UDH

Weight without pedals: 13.0kg
