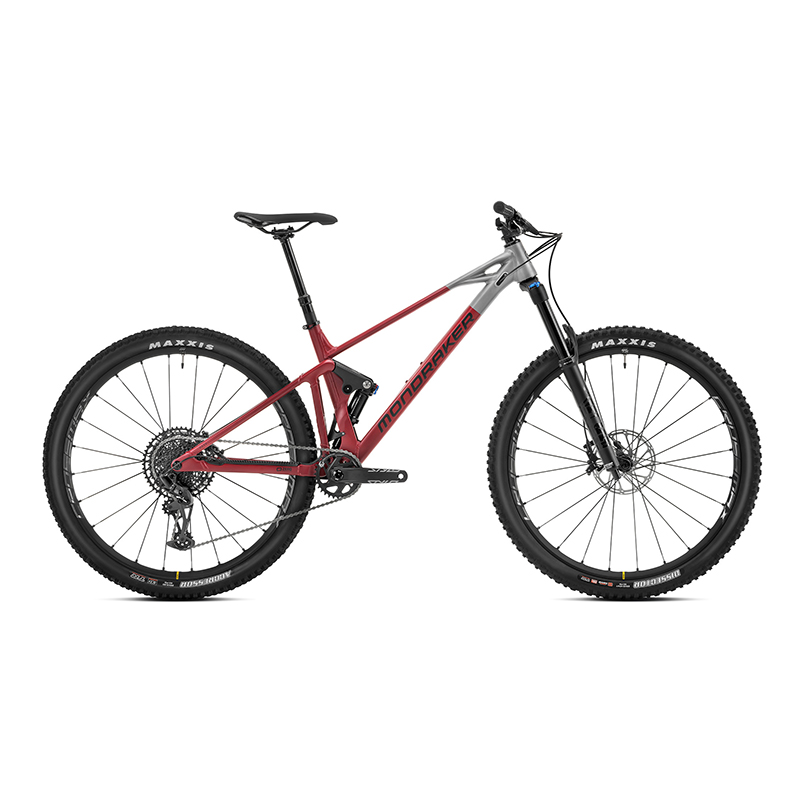

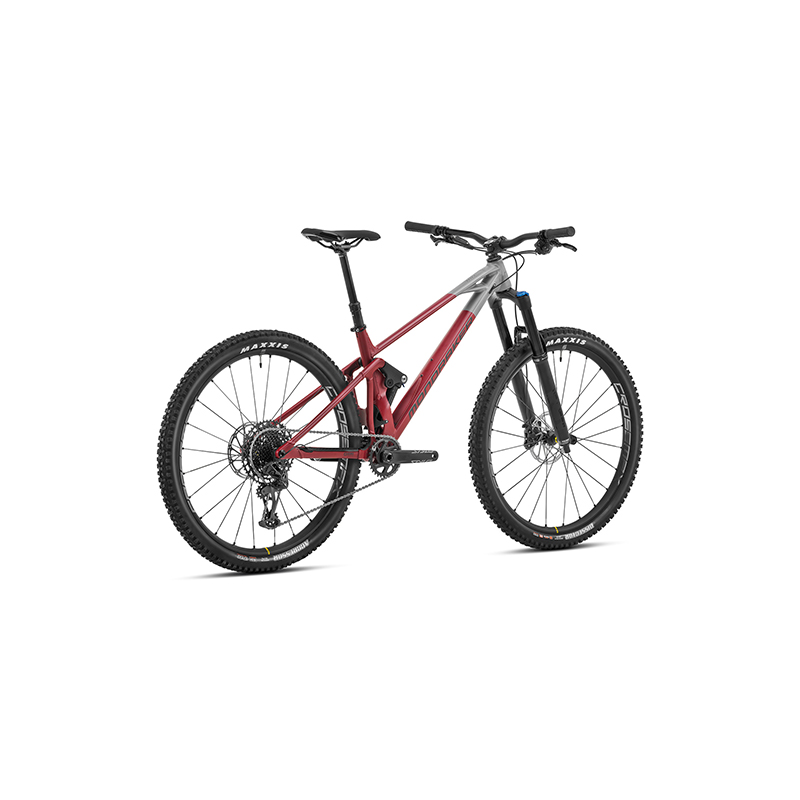

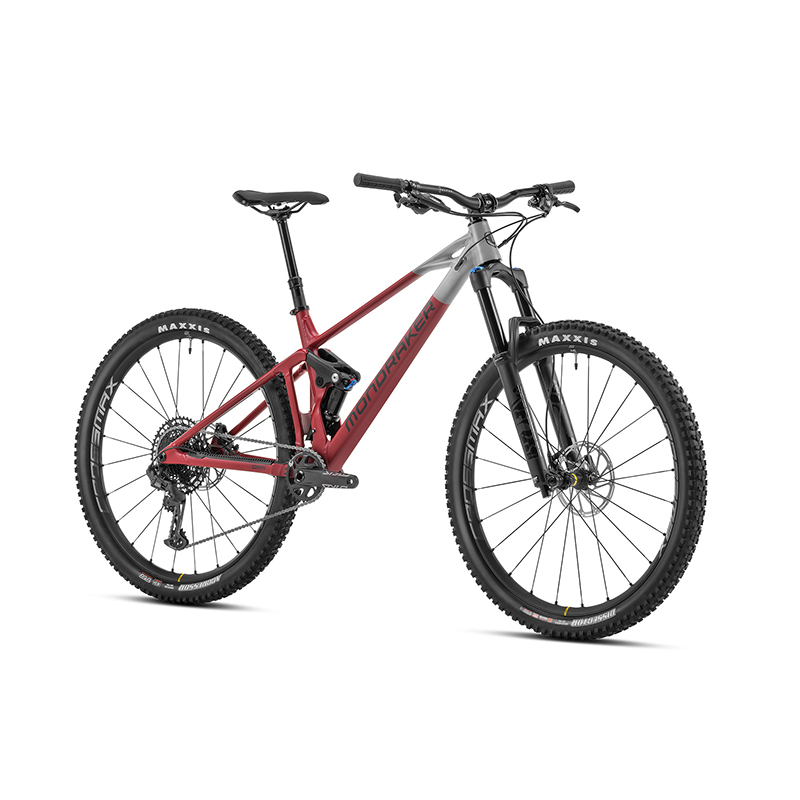

2023 MONDRAKER RAZE R

Chart

Raze 29 Stealth Evo, hydroformed aluminum alloy, Zero Suspension System, 130mm travel, Forward Geometry, Monobloc upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single chainrings, internal cable system HHG, Enduro MAX sealed bearings, ISCG 05

Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Shock absorber: Fox Float DPS LV EVOL Performance, 205×57.5mm. Adjustments: 3-position compression lever (Open/Mid/Lock), air preload. Trunnion upper anchor, 25x8mm lower bushings.

Shock Absorber Adjustment: Light Compression, Light Rebound, Token 0.6

Fork: Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered head tube, 15x110mm Boost axle, 44mm offset. Adjustments: compression with “sweep”, low rebound, air preload

Address: ONOFF Saturn profiled for 1-1/8” to 1-1/2” tube, ACB sealed bearings, upper 41×30.2x7x45ºx45º, lower 51.9x40x8x45ºx45º

Power: ONOFF Sulfur FG 30mm 0º, forged 6061, for 31.8mm handlebars

Handlebar: ONOFF Sulfur 1.0 two-butted alloy 6061, height: 20mm, width: 800mm, 9º backsweep, 5º upsweep, diameter 31.8mm

Grips: ONOFF Twin, 1 lock-on, 135mm

Shank: ONOFF Pija internal wiring, diameter 31.6mm, size S: 405×95-125mm, M: 458×120-150mm, L: 498×140-170mm, XL: 498×140-170mm

Saddle: MDK series PU 2023

Front brake: SRAM G2 R, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads

Back brake: SRAM G2 R, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads

brake levers: SRAM G2, SwingLink, tool-free reach adjustment

Tires: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Radios: 24 straight pull bi-butted spokes

front hub: Infinity hub, Boost 15x110mm, IS 6 bolts

rear hub: Infinity hub, core with ID360 technology, Boost 12x148mm, IS 6 bolts

Front tire: Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim

rear tire: Maxxis Aggressor 29×2.3, tubeless ready, double compound, Exo casing, 60TPI, folding rim

Cranks: Truvativ Stylo 7K Eagle, Boost, DUB axle, Direct Mount chainring, S/M: 170mm, L/XL: 175mm

Dishes: 32, CNC machined alloy, X-SYNC 2

bottom bracket: SRAM DUB BSA, sealed bearings, 73mm

Chain: SRAM NX Eagle, 12v, Powerlock

Shift – rear: SRAM GX Eagle, Type 3 clutch with needle bearings, box lock, 1x12v, X-ACTUATION 1:1

Controls – shift buttons: SRAM Trigger NX Eagle, 12v, X-ACTUATION 1:1

Pinions: SRAM XG-1230, 11-50, 12v

shift pin: SRAM UDH

Weight without pedals: 14.9kg
