FEATURES
- PROVEN PERFORMANCE: Enjoy proven performance and power with the 32 HP ProStar engine that’s built to take on tough jobs with the most power in its class. The fast-engaging true On-Demand AWD gives the traction you need, when you need it, for rough terrain.
- HARD WORKING: Haul logs, clear brush, and tackle tough tasks on your property with class-leading 1,500 lb towing capacity and 500 lb cargo box capacity. Easily hook up a trailer with the standard 2” hitch receiver to tackle bigger jobs in fewer trips.
- ALL-DAY COMFORT: Experience a smooth ride with best-in-class 10” of ground clearance and independent rear suspension with 9” of suspension travel. Enjoy added comfort with an adjustable tilt steering wheel, plus the compact design can be stored in the back of many trucks.
- COMFORT & CONVENIENCE: RANGER 500 73” wheel base and 58” width can be stored in the back of many trucks so you can take it out for the jobs you need.
- ADJUSTABLE TILT STEERING: Utilize the tilt steering to adjust the position of the steering wheel to easily enter and exit the vehicle.
- VERSATRAC TURF MODE: For work around the house, unlock the rear differential for easier and tighter turns that won’t tear up your lawn.
- CONVENIENT STORAGE: Equipped with in-dash sealed storage and 2 cup holders so you can comfortably take everything you need along for the job.
- WORKS HARDER: The RANGER 500 has standard features to help you work faster and harder.
- STANDARD 2” HITCH RECEIVER: Connect your trailer to your RANGER with the standard 2” hitch receiver and utilize the 1,500 lb towing capacity.
- VERSATILE CARGO BOX: Haul up to 500 lbs using the cargo box and take advantage of Polaris Lock & Ride Accessories to carry any item needed for the job.
- GAS ASSIST DUMP BOX: Haul up to 500 lbs using the cargo box and take advantage of Polaris Lock & Ride Accessories to carry any item needed for the job.
SPECIFICATIONS
GENERAL INFORMATION
Manufacturer: Polaris
Model Year: 2022

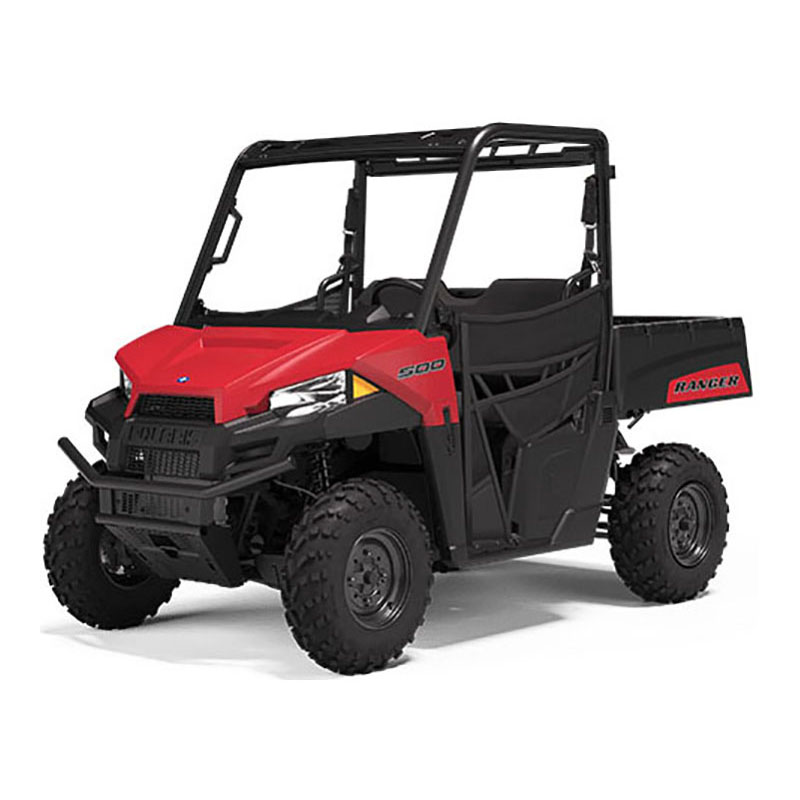

Model: Ranger 500
Model Code: R22MAA50A7
Color: Solar Red
BRAKES/WHEELS/TIRES
Brakes:
Front / Rear – 4-Wheel Hydraulic Disc
Parking – Park In-Transmission
Wheels: Stamped Steel
Tires:
Front – 25 x 8-12; Carlisle 489
Rear – 25 x 10-12; Carlisle 489
DIMENSIONS
Length: Overall – 110 in. (279 cm)
Height: Overall – 73 in. (185 cm)
Width: Overall – 58 in. (147 cm)
Weight: Estimated Dry – 1,065 lb. (483 kg)/ GVW – 2,134 lb. (968 kg)
Ground Clearance: 10 in. (25.4 cm)
Wheelbase: 73 in. (185.4 cm)
Turning Radius: 14.9 ft.
DRIVETRAIN
Transmission: Automatic PVT H / L / N / R / P
Drive System: On-Demand True AWD / 2WD / VersaTrac Turf Mode
Final Drive: Shaft
ELECTRICAL
Instrumentation: Single Analog Dial with 2 in. LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
Lighting: 50W Headlight, LED Tail
ENGINE
Engine: 4-Stroke
Cooling: Liquid
Cylinders: Single
Horsepower: 32 hp
Displacement: 500 cc
Fuel System: Electronic Fuel Injection
Fuel Tank Capacity: 9 gal. (34.1 l)
OPERATIONAL
Front Suspension:
MacPherson strut: Travel – 9 in. (22.9 cm)
Rear Suspension:
Dual A-arm, IRS: Travel – 10 in. (25.4 cm)
Steering: Tilt – Standard
Seating: 2 Person Capacity
