Description

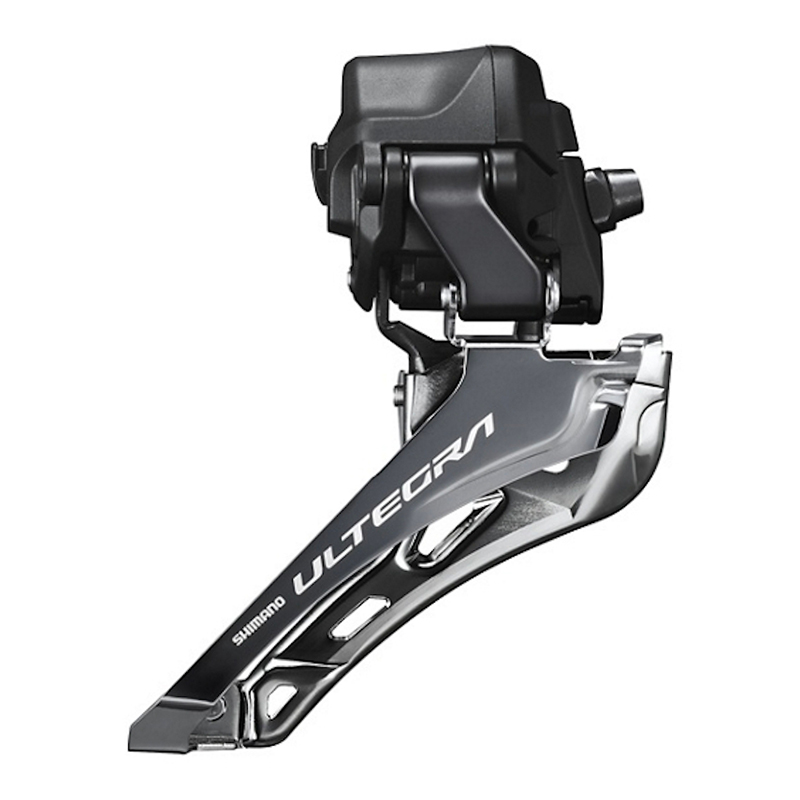

Shimano Ultegra Di2 FD-R8150 12 Speed Front Derailleur
More compact and faster than ever, the Ultegra R8150 front derailleur performs digitally precise front shifts under any circumstances.
Combining Shimano’s new Di2 platform and the road incarnation of HyperGlide+, the Ultegra R8150 front derailleur shifts between chainrings with the fastest, most seamless action on the market.

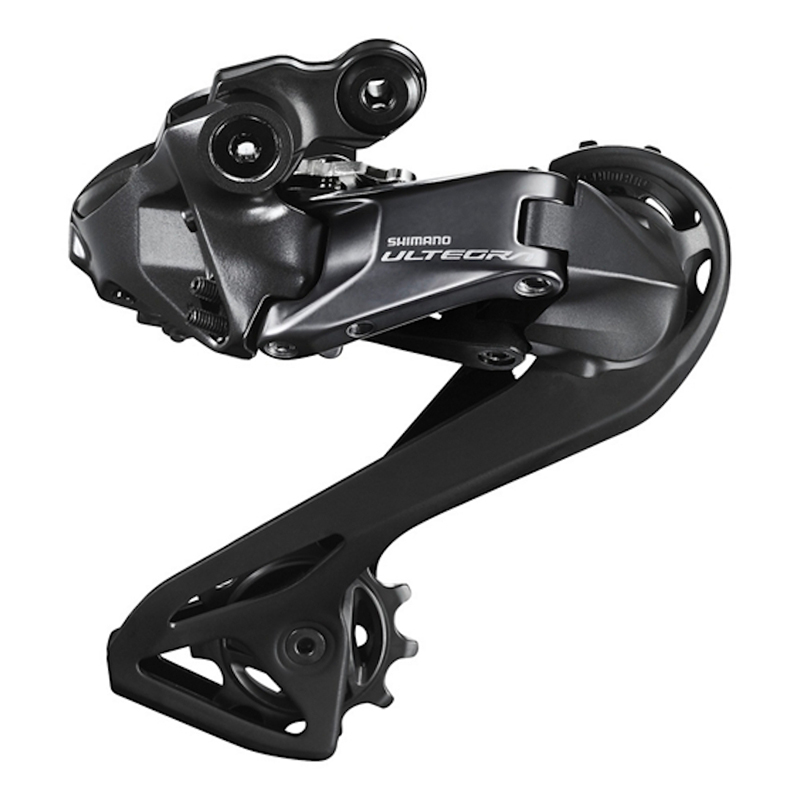

Shimano Ultegra Di2 RD-R8150 12 Speed Rear Derailleur
Now simplified with a single derailleur cage length, the new 12-speed Shimano Ultegra R8150 rear derailleur packs the fastest, most precise shifting on the market into a more affordable option.
With the fastest, most accurate shifting on the market, the new 12-speed Ultegra R8150 rear derailleur is more versatile than ever thanks to a single cage length option compatible with 11-28, 11-30, and 11-34 cassettes.

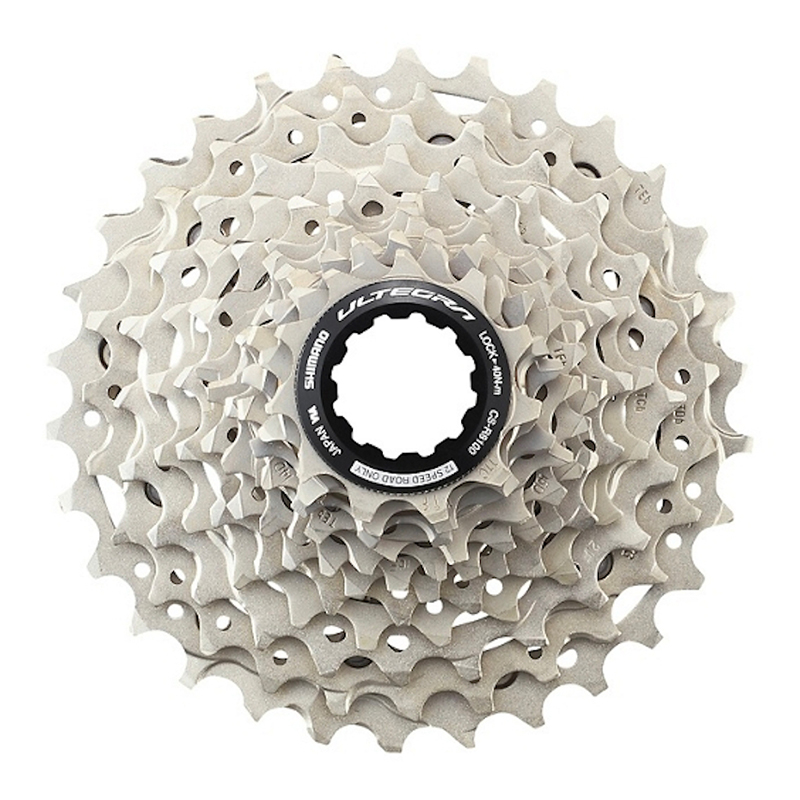

Shimano Ultegra CS-R8100 12 Speed Cassette 11-30
The uninterrupted shifting experience of the Ultegra R8100 12-speed cassette range lets you climb, sprint, or cruise without stopping to think about your next gear change. Larger driving cogs maximise drivetrain efficiency and create compatibility with both Shimano 11 and 12-speed Freehub bodies.
HyperGlide+ cassettes revolutionised off-road shifting with its seamless shifts both up and down the gear range. Now it’s time for the technology to change road cycling. Even during maximal efforts up a climb or racing a friend, riders no longer need to back off to perform a shift. In any gear, Shimano Ultegra R8150 drivetrains maximise efficiency thanks to larger cogs and retain compatibility with existing HyperGlide Freehub bodies. All this while increasing to 12-gears, Ultegra CS-R8100 cassettes are the new paradigm in road shifting.

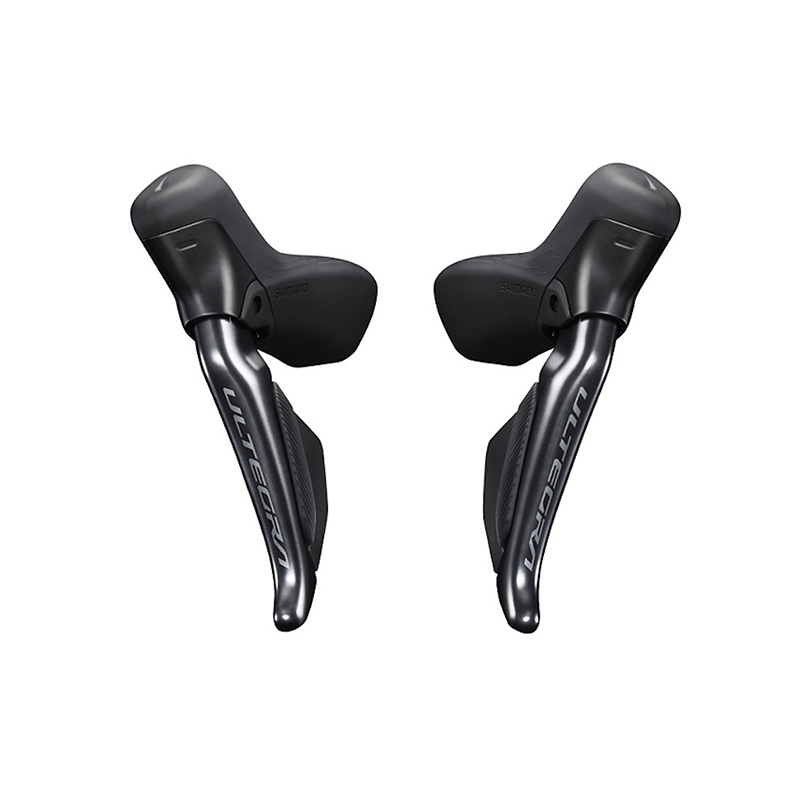

2x Shimano Ultegra Di2 ST-R8170 12 Speed Shifter w/ BR-R8170 Disc Brake Caliper

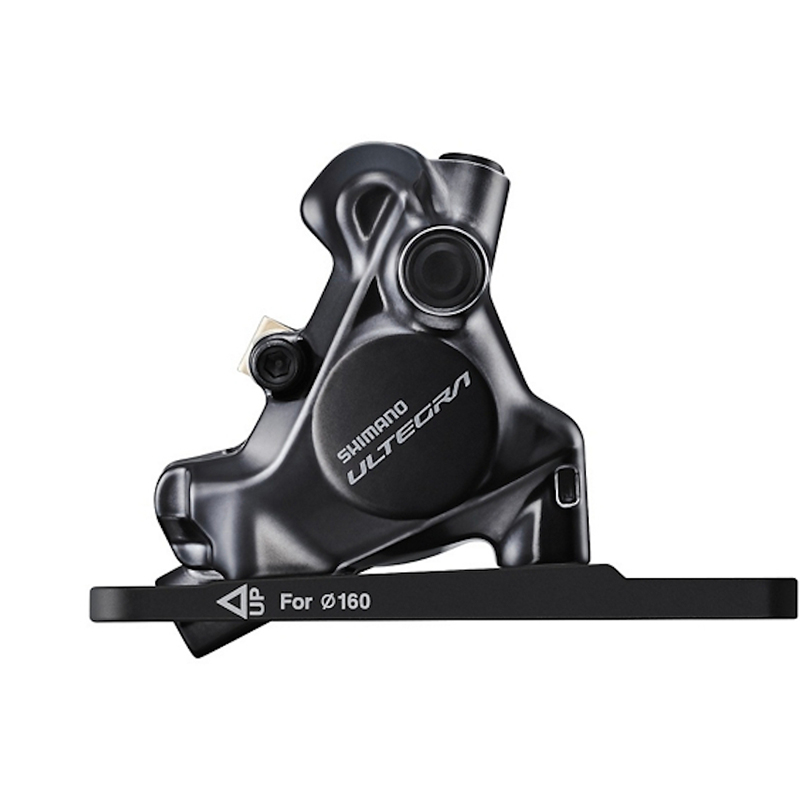

Disc Brake Caliper
To the delight of riders and mechanics alike, the new Ultegra BR-R8170 caliper delivers enhanced modulation, a quieter brake system, and an easier than ever bleed process.
The Ultegra R8170 disc brake caliper brings a new level of control to the road cycling world with enhanced modulation and a quicker initial braking point. Despite its smaller construction, the system is quieter than ever and easier to maintain.
Levers
Road riding has never been this much fun. That’s because the redesigned Ultegra ST-R8170 Dual Control Levers have all-new ergonomics, even more precise brake modulation, and wireless electronic shifting. This trifecta lets you focus on the next sprint, the next descent, or the next joke from your riding partner.
Shimano’s new Ultegra ST-R8170 brake levers bring enhanced modulation and control to every ride by employing Shimano’s proven Servo Wave technology. The all-new Di2 platform, used on both Dura-Ace and Ultegra, untethers the shifters while delivering the world’s fastest, most reliable wireless shifting. Your time on the bike is precious, let Shimano make it even better.
1x Shimano Deore XT RT-MT800 Ice-Tech Freeza Disc Rotors 140mm
1x Shimano Deore XT RT-MT800 Ice-Tech Freeza Disc Rotors 160mm
Shimano’s Deore XT RT-RT800 compact and lightweight disc brake rotors feature rapid heat dissipation thanks to Ice Technologies Freeza heat management system. Installing and removing the rotors is quick and easy with Shimano’s Center Lock design.

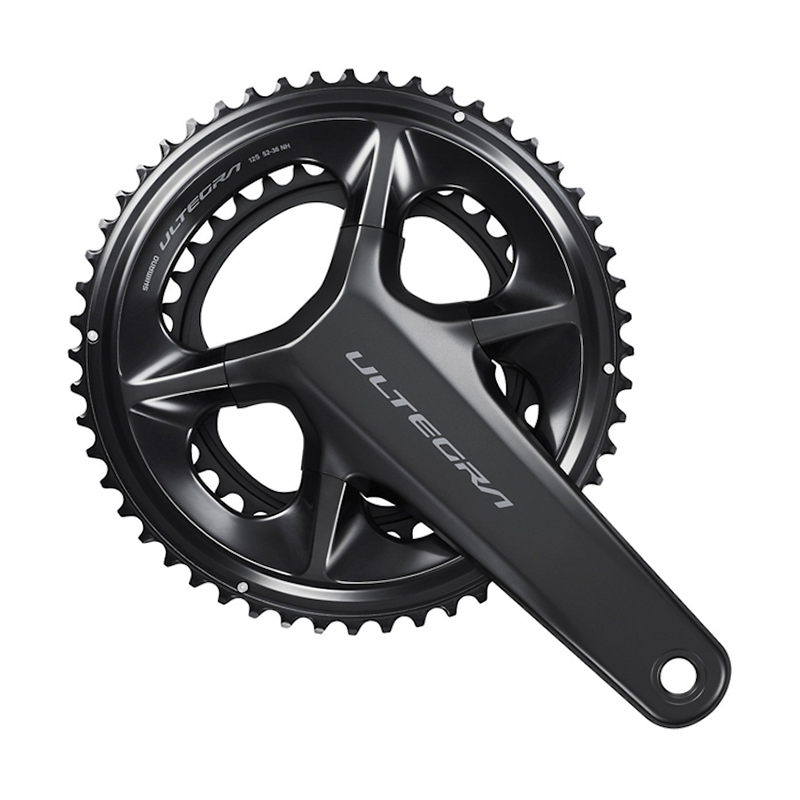

Shimano Ultegra FC-R8100 12 Speed Crankset
Ultegra’s new FC-R8100 crank maintains the same quick, precise front shifting and efficient power transfer that Shimano riders have grown accustomed to, but with even more crank arm length options. Spanning 160 to 175 mm in length, Ultegra cranks now cater to smaller riders, triathletes, and cyclists curious about shorter crank arms.
An integral part of Shimano’s new 12-speed road lineup, the FC-R8100 crank builds upon Shimano’s legendary front shifting and transmission efficiency. With new refinements for seamless 12-speed shifting, the Ultegra crank is now offered in lengths from 160 to 175 mm, bringing performance and improved fit for smaller riders, triathletes, and riders with specific biomechanical requirements.

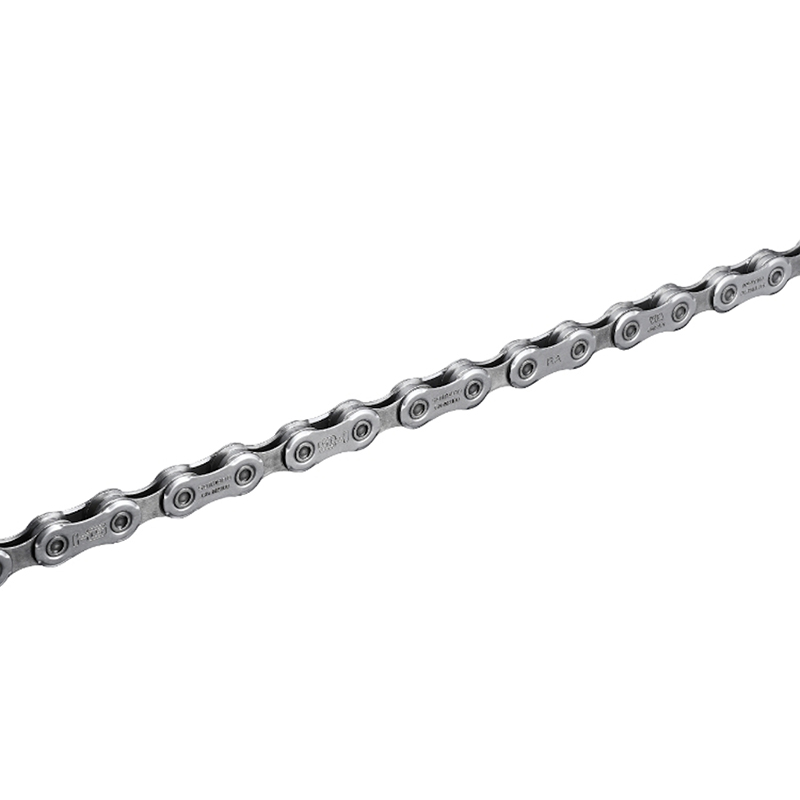

Shimano Ultegra CN-M8100 12 Speed Chain
The M8100 chain provides enhanced chain retention thanks to an extended portion of the inner plate. The new chain features quick-link assembly and SIL-TEC treatment for extended offroad durability.

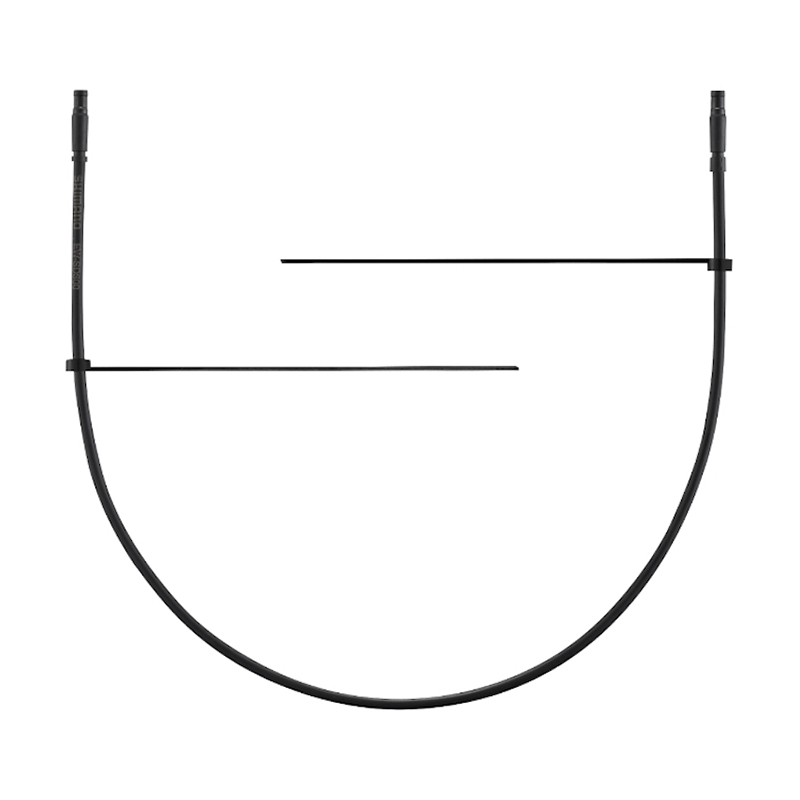

2x Shimano EW-SD300-I Electric Wires for Di2 12 Speed (700mm & 1200mm)
Electric Wire SD300 for Internal Routing

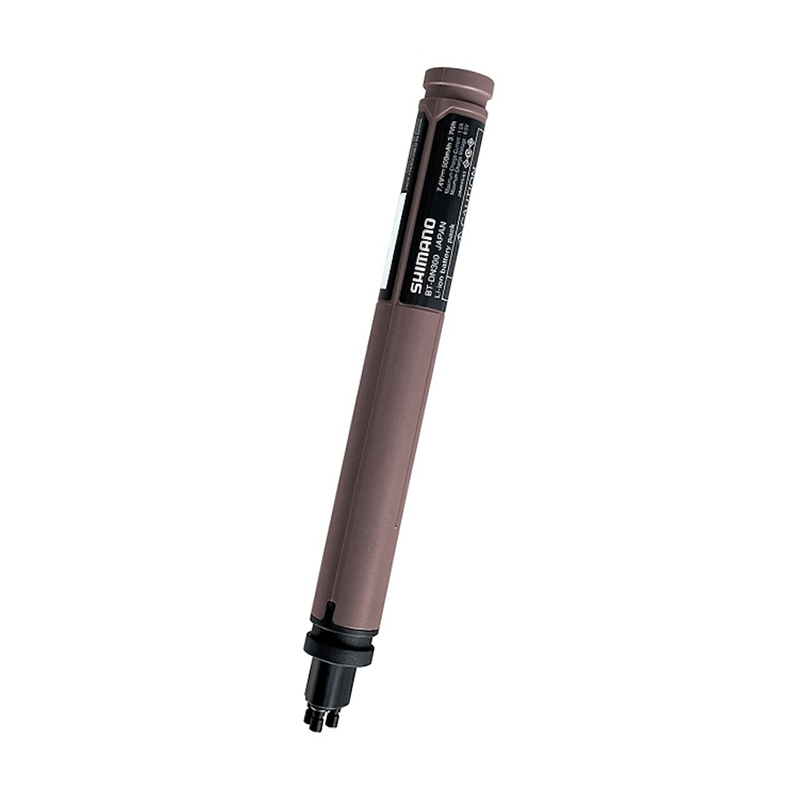

Shimano BT-DN300 Internal Battery 12 Speed
The new DN300 battery features the same waterproof design that Di2 users have loved for generations. Now with 3 ports, it delivers stable power to Shimano’s 12-speed road derailleurs and shifters (if a fully wired option is selected).
With the same size as its predecessor, the slim DN300 battery can be housed inside seat posts or frames ensuring a clean aesthetic. Now with 3 ports, the DN300 simplifies wiring to front and rear derailleurs, supplying stable power at all times. The third port is for riders who seek the redundancy of Shimano’s 12-speed Di2 wired option.
Shimano EW-EC300 Charging Cable 12 Speed
The new EC300 charging connector is designed specifically for Shimano’s 12-speed Di2 road drivetrains. Connected via the rear derailleur, it is also compatible with Shimano power meters.
Charging of the new Shimano 12-speed Di2 road drivetrains is now accomplished with the EC300 charger cord. Attached to the rear derailleur, this new cord is less expensive than previous chargers and can also be used to charge Shimano power meters.
Specifications
Shimano Ultegra Di2 FD-R8150 12 Speed Front Derailleur
| Colour | Series color |
|---|---|
| Average Weight | 110 |
| Action | Down Swing |
| Chain line | 44.5mm |
| Chain stay angle | 61 – 66 deg |
| Compatible chain | HG 12-speed |
| Firmware update by E-TUBE PROJECT | Yes |
| Link Bushings | 4 |
| Mount | Brazed-On |
| Top gear teeth | 50-54T |
| Total capacity | 16T |
| Front Speeds | 2 |
| Rear Speeds | 12 |
| SD300 connector (pcs) | 0 |
| SD300 port (pcs) | 1 |
| SD50 connector (pcs) | 0 |
| SD50 port (pcs) 0 | 0 |
Shimano Ultegra Di2 RD-R8150 12 Speed Rear Derailleur
| Average Weight | 262 |
|---|---|
| Remarks | w/o Bracket spec. available |
| Firmware update by E-Tube Project | Yes |
| Total capacity | 39T |
| B-axle | Hollow axle |
| B-axle 2 | Hollow axle |
| Mount | Direct mount compatible |
| Fluoric coated link bushings | 4 |
| Low sprocket | Min: 28T Max: 34T |
| Max. front difference | 16T |
| Pulley | G pulley bearing: Yes Sunken type pulley bolt: Yes Teeth: 11 T Pulley Bearing: Yes |
| Top | Normal spring type: SHADOW RD Sprocket: 11T Min, 14T Max |
| Rear Speeds | 12 |
| SD300 connector (pcs) | 0 |
| SD300 port (pcs) | 1 |
| SD50 connector (pcs) | 0 |
| SD50 port (pcs) | 0 |
Shimano Ultegra CS-R8100 12 Speed Cassette 11-30
| Average Weight | 291 (11-30T) 345 (11-34T) |
|---|---|
| Combination | 11-12-13-14-15-16-17-19-21-24-27-30T | 11-12-13-14-15-17-19-21-24-27-30-34T |
| Combination name (Group name) | 11-30T 11-34T |
| Speeds | 12 |
| Type | HyperGlide+ |
| Compatible chain | HG 12-speed |
| Aluminum gear | 0 pcs |
| Aluminum spider arm | 2 pcs |
| Steel gear | 12 pcs |
| Titanium gear | 0 pcs |
2x Shimano Ultegra Di2 ST-R8170 12 Speed Shifter w/ BR-R8170 Disc Brake Caliper
Disc Brake Caliper:
| Colour | Series color |
|---|---|
| Average Weight | 146 (Front) 136 (Rear) |
| Ice Technologies pad compatible caliper | Yes |
| Brake Hose Colour (kit) | Black |
| Brake Hose (kit) | SM-BH90-JK-SSR |
| Brake Type | Hydraulic disc brake |
| Caliper fixing bolt | Anti loosen method: Bolt fix pin, snap ring Tool Size: 4mm |
| Fixing bolt Spec for rear mount | 10mm, 15mm, 20mm, 25mm, 30mm, 35mm |
| Hose Joint | Straight |
| Mount Type | Flat Mount |
| One Way Bleeding | Yes |
| Pad Mount | pad Axle |
| Piston | 2 |
| Recommended brake lever | ST-R8170 |
| Recommended disc brake rotor | RT-MT800 |
| J-Kit Spec (for OEM) | Yes |
| Oil | SHIMANO Mineral |
Levers:
| Colour | Series Colour |
|---|---|
| Average Weight | 391 (/pair) |
| Port for remote sprinter shifter (pcs) | 0 |
| Brake lever | Brake fluid: SHIMANO Mineral Oil Free stroke adjust Recommended brake caliper: BR-R8170 Servo Wave Brake hose (Kit): SM-BH90-JK-SSR Funnel Bleeding: Yes Hose Joint: Straight |
| Shifter | Dual Control Lever |
| SD300 Connector | 0 |
| SD300 port | 1 |
| SD50 connector | 0 |
| SD50 port | 0 |
1x Shimano Deore XT RT-MT800 Ice-Tech Freeza Disc Rotors 140mm
1x Shimano Deore XT RT-MT800 Ice-Tech Freeza Disc Rotors 160mm
| Average Weight | 163 (203 mm) 132 (180 mm) 108 (160 mm) 88 (140 mm) |
|---|---|
| Ice Technologies | Yes |
| Ice Technologies Freeza | Yes |
| Alloy Lock Ring | Yes |
| Center Lock | Yes |
| Outside diameter | 140, 160, 180, 203mm |
| Pad material compatibility | Metal, Resin |
| Pad lining shape compatibility | Narrow |
Shimano Ultegra FC-R8100 12 Speed Crankset
| Average Weight | 711 (52-36T) 700 (50-34T) |
|---|---|
| Threaded bottom bracket shell width | 70mm |
| Chainring combination | 52-36T 50-34T |
| Compatible bottom bracket type | Outboard |
| Crank fixing bolt | Included |
| Crank arm length | 160, 165, 170, 172.5, 175mm |
| Spider/Gear arms | 4 |
| HollowGlide | Yes |
| HollowTech II | Yes |
| HollowTech Crank Arm | Yes |
| Optional chain guard | Without chain/bash guard |
| Recommended bottom bracket | Press-fit: SM-BB72-41B Threaded (normal): SM-BBR60 |
| Threaded bottom bracket shell width | 68mm |
| Q-factor | 148mm |
| Chain line | 44.5mm |
| Compatible chain | CN-M8100 |
| P.C.D. | 110mm |
| Rear Speeds | 12 |
Shimano Ultegra CN-M8100 12 Speed Chain
| Average Weight | 252g |
|---|---|
| Remarks | Quick-Link |
| Chromising treatment roller link pin | Yes |
| Pin link plate | Grey |
| Roller link plate | Chromising |
| Type | HG 12-speed |
| Pin link plate | Grey |
| Roller link plate | Chromising |
| E-BIKE rear derailleur system compatible | Yes |
| Type | HG 12-speed |
2x Shimano EW-SD300-I Electric Wires for Di2 12 Speed (700mm & 1200mm)
| Remarks | Cable length:150-1600 mm |
|---|---|
| Type | For built-in routing |
| Compatible system | E-TUBE system |
| Cord diameter | Φ2.4 |
| Plug diameter | Φ3.45 |
| SD300 connector (pcs) | 2 |
| SD300 port (pcs) | 0 |
| SD50 connector (pcs) | 0 |
| SD50 port (pcs) | 0 |
Shimano BT-DN300 Internal Battery 12 Speed
| Average Weight | 52 |
|---|---|
| Remarks | Fixing smallparts and 3dummy capincluded |
| Type | Built-in battery |
| Compatible charger | TBD |
| Firmware update by E-TUBE PROJECT | Yes |
| Master unit | Yes |
| Chemistry | Li-Ion |
| Rated capacity | 0.5 Ah |
| Rated capacity | 3.7 Wh |
| Rated voltage | 7.4 V |
| SD300 connector | 0 pcs |
| SD300 port | 3 pcs |
| SD50 connec | 0 pcs |
| SD50 por | 0 pcs |
Shimano EW-EC300 Charging Cable 12 Speed
| Cable Length | 1.7m |
|---|---|
| Compatible with charging | FC-R9200-P |
| Charging connector for | RD-R9250 and FC-R9200-P |
